CSM10902-000
![CSM10902-000 CSM10902-000](/woodland/image.img?color=6a778f&text=333333&accent=f1a200&compliment=348fca&navigation=6a778f&heading=333333&title=000000&logo=333333&link=eb4600&picture.image.url=%2Ffiles%2F1762831%2Fuploaded%2Fcsm-1ph-240v.png&picture.width.max=140&picture.image.mask.apply=false&stage.width.max=350&cache=1721760824019) |
![Dimensions Dimensions](/account/images/thumbnail.img?color=6a778f&text=333333&accent=f1a200&compliment=348fca&navigation=6a778f&heading=333333&title=000000&logo=333333&link=eb4600&picture.image.url=%2Ffiles%2F1762831%2Fuploaded%2Fcsm-hotflow-dimensions.jpg&picture.width.max=28&picture.height.max=28&picture.image.crop.apply=true&picture.image.crop.xaspect=28&picture.image.crop.yaspect=28&picture.image.mask.apply=false&stage.width.max=28&state=center&cache=1721760824019) ![](/account/images/thumbnail.img?color=6a778f&text=333333&accent=f1a200&compliment=348fca&navigation=6a778f&heading=333333&title=000000&logo=333333&link=eb4600&picture.image.url=%2Ffiles%2F1762831%2Fuploaded%2Fcsm-hotflow-small.jpg&picture.width.max=28&picture.height.max=28&picture.image.crop.apply=true&picture.image.crop.xaspect=28&picture.image.crop.yaspect=28&picture.image.mask.apply=false&stage.width.max=28&state=center&cache=1721760824019) |
Click to enlarge image(s)
|
PLEASE CALL FOR DELIVERY. STANDARDD DELIVERY DOES NOT APPLY
*** Due tu supply chain shortages, all CSM units have an approximate 24 week ship date. ***

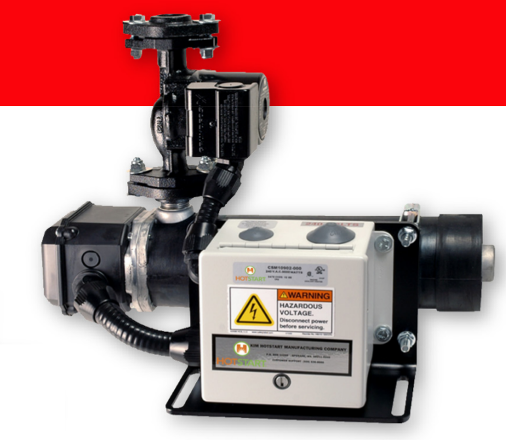

HOTSTART’s HOTflowTM heating system (CTM model) is a complete coolant preheater with thermostat, pump and all required controls. The CSM model heats engines ranging in size from 15L-100L displacement. Forced circulation of the coolant delivers uniform heating throughout the entire engine, extends element life and offers a significant reduction in electrical consumption.
APPLICATION
HOTflowTM model CSM was developed to preheat diesel and gas engines for stationary land power, marine, large mining and construction equipment.
SPECIFICATIONS
- Heating Fluid: Engine coolant (50% glycol/50% water)
- Power: 9 kW
- 39.5 Amps
- Rated Voltage: 1 Phase 240V, 60Hz
- Tank Material: Aluminum
- Adjustable T-Stat: 90° - 130°F (32°- 55°C)
Pre-set at 110°F (43.5°C)
- Ingress Protection: IP44 (50Hz), NEMA 2 (60Hz)
- Fluid Capacity: 0.6gl (2.19L)
- Flow: 10GPM (2.2 m3/hr) @ 10ft head (0.3bar)
- Max PRessure: 125 PSI (8.61bar)
- Pressure Loss: 0.22PSI (0.015bar)
- 1" NPT Inlet, 1" NPT Outlet
Watts
|
9000
|
Amps
|
39.5
|
Phase
|
Single
|
Voltage
|
240 V
|
Frequency
|
60 Hz
|
Engine Size
|
3000-4500 CID - 50-75 Liters
|
UL-C/US listed - (60 Hz models) - E250789CE
|
|
Compact design
|
|
Easy to install
|
|
Controls for automatic operation
|
|
